Sampling Handhelds (WQS)

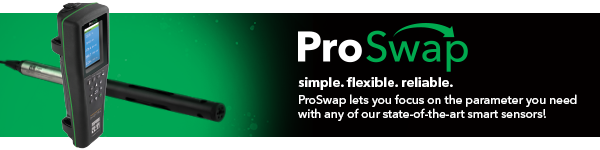

YSI ProSwap Digital Water Quality Meter

Swap one smart sensor for another with the ProSwap digital water quality meter! Featuring built-in temperature and optional depth sensors, ProSwap can transform into whatever you need: a purpose-built turbidity meter or a high-accuracy optical DO meter; a spot sampling pH meter or a profiling conductivity-temperature-depth system. Even beach monitoring for harmful algal blooms is possible with ProSwap!

ProDIGITAL Platform for Enhanced Versatility

Connect any ProDIGITAL integrated probe/cable assembly to the ProSwap handheld or any ProDSS digital water quality sensor to the ProSwap cable. Sensors and cable assemblies are user-replaceable with cable lengths ranging from 1- to 100-meters.

ProDIGITAL Smart Sensors

Swap one sensor for another! The ProSwap incorporates smart sensor technology that enables sensors to be automatically recognized by the handheld. Additionally, DIGITAL sensors store calibration data, so probe assemblies can be swapped between handhelds without the need for re-calibration.

Provides Years of Sampling for All Field Conditions

The ProSwap handheld meets the demands of true field work with a rugged, waterproof case (IP-67 rated) and a military-spec (MS) cable connector. Rigorously drop tested from all angles, the handheld features a 3-year warranty, while a 2-year warranty is included with the cable assembly and any sensor variety.

Advanced Data Management

ProSwap includes KorDSS Software, a powerful data management program for easy 2-way communication between the meter and a PC. A unique data backup feature allows for the export of data to a USB flash drive (included) in csv format without having to connect to a computer.

Convenient Sampling Experience

  • Ergonomic handheld for a comfortable grip
  • Easy-to-read color display and backlit keypad
  • Large onboard memory with storage capacity for over 100,000 data sets
  • Site ID and Data ID tag capabilities for data organization
  • Data export directly to USB flash drive (included)
  • Single cable design for probe assembly lengths ranging from 1- to 100-meters
  • Long-life rechargeable lithium-ion battery that is user-replaceable
  • Simple and quick calibration procedures

Do you have an old meter you'd like to trade in for a discount on a new ProSwap system? Check out the Pro Series Trade-In Promotion going on now (U.S. only).

The ProSwap uses the same manual as the other ProDigital handhelds (ProSolo, single-parameter and ProDSS, multiparameter). While the manual has not yet been updated to reference the ProSwap, please refer to this document for instructions and troubleshooting until such updates can be made. As always, contact customer support if you experience any difficulties.

YSI ProQuatro Multiparameter Meter

The ProQuatro handheld multiparameter meter measures a variety of combinations of dissolved oxygen, conductivity, specific conductance, salinity, resistivity, total dissolved solids (TDS), pH, ORP, pH/ORP combination, ammonium (ammonia), nitrate, chloride and temperature. Also a very powerful lab instrument for BODs, pH and ORP.

EPA approved for drinking water and wastewater compliance reporting.

Instrument Only.  Cables, probes/sensors, and accessories sold separately.

Step 1: Order Instrument

SKU Description
606950 Instrument, includes batteries, USB cable, and USB flash drive.

Step 2: Order Cable(s)

SKU Description
60510 1, 4, 10, 20 or 30 meter: ISE*/temp
60520 1, 4, 10, 20, 30 or up to100 meters**: DO/temp
60530 1, 4, 10, 20 or 30 meter: conductivity/temp
6051010 1, 4, 10, 20 or 30 meter: ISE/ISE/temp
6051020 1, 4, 10, 20 or 30 meter: ISE/DO/temp
6051030 1, 4, 10, 20 or 30 meter: ISE/conductivity/temp
6052030 1, 4, 10, 20 or 30 meter: DO/conductivity/temp
605790 1, 4, 10, 20 or 30 meter: ISE/ISE/DO/conductivity/temp
605107 1–meter single junction pH sensor & cable
605177 4–meter single junction pH sensor & cable
605108 1–meter single junction ORP sensor & cable
605178 4–meter single junction ORP sensor & cable
605109 1–meter single junction pH/ORP sensor & cable
605179 4–meter single junction pH/ORP sensor & cable

Step 3: Order Sensor(s)

SKU Description
605202 Galvanic DO
605203 Polarographic DO
605780 Self-stirring BOD (2-meter cable included)
605101 pH (ISE)
605102 ORP (ISE)
605103 pH/ORP combination (ISE)***
605104 Ammonium (ISE)
605105 Chloride (ISE)
605106 Nitrate (ISE)

* ISEs include pH, ORP, Ammonium, Nitrate, Chloride
** Special order cables in 10-meter increments up to 100 meter available
*** Not recommended on 6051010 or 605790 cables. Only pH would appear.



YSI ProDSS Multiparameter Water Quality Meter

The YSI ProDSS (digital sampling system) handheld multiparameter meter provides extreme flexibility with two main cable options. Choose between the fully loaded 4-port cable assembly outfitted with any four DSS sensors (with depth or no depth) or the ODO/CT probe and cable - where you get accurate DO measurements every time with an optical dissolved oxygen sensor with an inline conductivity sensor, allowing for real-time salinity compensation.

Want to learn more about the ProDSS? Our online learning program – ProDSS On-Demand Training – is free to use and ensures all trainees are comfortable going into the field with the ProDSS. We hope to see you in class!

Instrument Only.  Cables, probes/sensors, and accessories sold separately.

Step 1: Order Instrument

SKU Description
626870-1 Instrument without GPS; includes rechargeable lithium-ion battery (pre-installed), hand strap, USB cable, universal AC adapter, micro USB to USB adapter cable, ProDSS quick start guide, and USB memory stick containing KorDSS software and digital copy of the entire manual
626870-2 Instrument with GPS; includes rechargeable lithium-ion battery (pre-installed), hand strap, USB cable, universal AC adapter, micro USB to USB adapter cable, ProDSS quick start guide, and USB memory stick containing KorDSS software and digital copy of the entire manual

Step 2: Order Cable(s)

Cables do not include temperature sensor; all cables include 4 sensor ports and a maintenance kit (3 port plugs, tube of Krytox lubricant, brush for conductivity probe, syringe for depth sensor cleaning, and sensor installation/removal tool). All cables 10 meters and longer include a 1 lb weight. Cable lengths of 10 m, 20 m and 30 m include a cable management kit.

SKU Description
626909-1, -4, -10, -20, -30, -40, -50, -60, -70, -80, -90 or -100 m No depth sensor; Indicate cable length when ordering (Example: 626909-10 to indicate the 10-meter length)
626910-1, -4, or -10 m Depth sensor integrated; Indicate cable length when ordering (Example: 626910-4 to indicate the 4-meter length)
626911-20, -30, -40, -50, -60, -70, -80, -90 or -100 m Depth sensor integrated; Indicate cable length when ordering (Example: 626911-50 to indicate the 50-meter length)
627150-1, -4, -10, -20, -30, -40, -50, -60, -70, -80, -90 or -100 m ProDSS ODO/CT cable with integral optical DO, conductivity and temperature sensors
626250-1, -4, -10, -20, -30, -40, -50, -60, -70, -80, -90 or -100 m ProODO cable with integral optical DO and temperature sensors
626400 ProOBOD BOD probe/cable assembly, lab probe; U.S./Japanese version with power supply
626401 ProOBOD BOD probe/cable assembly, lab probe; International version with power supply

Step 3: Order Digital, Smart Sensors

A conductivity/temperature sensor must be installed in a ProDSS cable for accurate measurement of all parameters.

SKU Description
626900 Optical Dissolved Oxygen (ODO)
626901 Turbidity
626902 Combination Conductivity and Temperature sensor
626903 pH with attached replaceable module
626904 pH/ORP with attached replaceable module
626905 Nitrate with attached replaceable module
626906 Ammonium with attached replaceable module
626907 Chloride with attached replaceable module
626210 Total Algae PC Phycocyanin Freshwater
626211 Total Algae PE Phycoerythrin Saltwater

Step 4: Order Standards and Solutions

SKU Description
065270 Conductivity calibrator, 1000 µmhos/cm (quart, glass); ideal for fresh water
065272 Conductivity calibrator, 10000 µmhos/cm (quart, glass); ideal for brackish water
065274 Conductivity calibrator, 100000 µmhos/cm (quart, glass); ideal for supersaturated sea water
060907 Conductivity calibrator, 1000 µmhos/cm (8 each, pint, plastic); ideal for fresh water
060906 Conductivity calibrator, 1413 µmhos/cm, ±1%, 0.01 M KCl (8 each, pint, plastic)
060911 Conductivity calibrator, 10000 µmhos/cm (8 each, pint, plastic); ideal for brackish water
060660 Conductivity calibrator, 50000 µmhos/cm (8 each, pint, plastic); ideal for sea water
603824 pH buffers, 2 pints each of 4, 7, and 10 buffers (plastic)
003821 pH buffer, 6 pints of 4 buffer (plastic); ideal for storage solution for pH sensor
003822 pH buffer, 6 pints of 7 buffer (plastic)
003823 pH buffer, 6 pints of 10 buffer (plastic)
061320 ORP (mV) calibrator, Zobell solution, powder - needs hydrated (125 mL bottle)
608000 Turbidity standard, 0 FNU (1 gallon, 3.78 l)
607200 Turbidity standard, 12.4 FNU (1 gallon, 3.78 l)
607300 Turbidity standard, 124 FNU (1 gallon, 3.78 l)
607400 Turbidity standard, 1010 FNU (1 gallon, 3.78 l)
003841 Ammonium standard, 1 mg/L (500 mL)
003842 Ammonium standard, 10 mg/L (500 mL)
003843 Ammonium standard, 100 mg/L (500 mL)
003885 Nitrate standard, 1 mg/L (500 mL)
003886 Nitrate standard, 10 mg/L (500 mL)
003887 Nitrate standard, 100 mg/L (500 mL)
005580 Confidence Solution to verify pH, ORP and conductivity data (not for calibration)

Step 5: Order Accessories

SKU Description
626946 Large, hard sided carrying case
603075 Large, soft-sided carrying case
626945 Small, hard-sided carrying case (1- and 4-meter cables)
599080 Flow cell
603056 Flow cell mounting spike
063507 Tripod (screws into back of meter)
063517 Ultra clamp (screws into back of meter)
603070 Shoulder strap
603069 Belt clip (screws into back of meter)
626942 USB car charger
626943 Small external battery pack. Will typically recharge battery to ~50% when completely discharged.
626944 Large external battery pack. Will typically recharge battery and charge second battery to ~20%.
626940 AC charger (USA). Includes power supply and USB cable. (included with ProDSS meter)
626941 AC charge (international). Includes power supply, USB cable and outllet adapters. (included with ProDSS meter)
626846 Replacement Lithium-ion battery pack
626969 ProDSS USB flash drive (included with ProDSS meter)
626991 Cable for charging and PC connection (included as part of 626940 and 626941 and included with ProDSS meter)
626992 Cable for connection to USB drive (included with ProDSS meter)
626990 Cable maintenance kit; 3 port plugs, 1 Krytox tube, 1 brush, 1 syringe, 1 sensor install/removal tool, 6 o-rings (included with all cables)
626919 Probe guard kit
599786 Calibration/storage cup
603062 Cable management kit (included with any cable 10, 20, or 30-meters long)
626918 1 lb weight (included with any cable 10-meters and longer)
605978 4.9 oz weight
626890 Replacement optical DO sensor cap
626963 Replacement pH electrode module
626964 Replacement pH/ORP electrode module
626965 Replacement nitrate electrode module
626966 Replacement ammonium electrode module
626967 Replacement chloride electrode module





YSI ProSolo Optical Dissolved Oxygen and Conductivity Meter

ODO® Sensor Technology

Dissolved oxygen measurement technology has advanced from electrochemical sensors, such as polarographic and galvanic, to luminescent-based, optical sensors. YSI optical DO sensors are non-consumptive, meaning oxygen is not consumed during the measurement. As a result, there is no flow dependence or stirring required with ODO, allowing for the most accurate readings in the field.

Advantages over electrochemical sensors include:

  • Higher accuracy with no stir dependence
  • Less drift over time; holds calibration longer
  • Less maintenance; no membranes or electrolyte

Real-Time Salinity Compensation

With an integral conductivity module, the ODO/CT probe assembly enables the ProSolo to automatically compensate DO mg/L measurements for changes in salinity. The 4-electrode conductivity cell, designed for rugged field performance, is easily cleaned and requires minimal maintenance.

ProDIGITAL Smart Sensors

In addition to utilizing the most advanced DO sensing technology, the ProSolo incorporates smart sensor technology that enables sensors to be automatically recognized by the handheld. Additionally, DIGITAL sensors store calibration data, so probe assemblies can be swapped between handhelds without the need for re-calibration.

Provides Years of Sampling for All Field Conditions

The ProSolo handheld meets the demands of true field work with a rugged, waterproof case (IP-67 rated) and a military-spec (MS) cable connector. Rigorously drop tested from all angles, the handheld features a 3-year warranty, while a 2-year warranty is included with the probe assembly and ODO Cap.

Advanced Data Management

ProSolo includes KorDSS Software, a powerful data management program for easy 2-way communication between the meter and a PC. A unique data backup feature allows for the export of data to a USB flash drive (included) in csv format without having to connect to a computer.

Convenient Sampling Experience

  • Ergonomic handheld for a comfortable grip
  • Easy-to-read color display and backlit keypad
  • Large onboard memory with storage capacity for over 100,000 data sets
  • Site ID and Data ID tag capabilities for data organization
  • Data export directly to USB flash drive (included)
  • Single cable design for probe assembly lengths ranging from 1- to 100-meters
  • Long-life rechargeable lithium-ion battery that is user-replaceable
  • Simple and quick calibration procedures

YSI ProSolo ODO Optical Dissolved Oxygen Meter


ODO® Sensor Technology

Dissolved oxygen measurement technology has advanced from electrochemical sensors, such as polarographic and galvanic, to luminescent-based, optical sensors. YSI optical DO sensors are non-consumptive, meaning oxygen is not consumed during the measurement. As a result, there is no flow dependence or stirring required with ODO, allowing for the most accurate readings in the field.

Advantages over electrochemical sensors include:

  • Higher accuracy with no stir dependence
  • Less drift over time; holds calibration longer
  • Less maintenance; no membranes or electrolyte

ProDIGITAL Smart Sensors

In addition to utilizing the most advanced DO sensing technology, the ProSolo incorporates smart sensor technology that enables sensors to be automatically recognized by the handheld. Additionally, DIGITAL sensors store calibration data, so probe assemblies can be swapped between handhelds without the need for re-calibration.

EPA Approved Methodology

The optical BOD (OBOD) sensor utilizes EPA approved methodology for wastewater compliance reporting of BOD and CBOD, while ODO/T probe assemblies utilize EPA approved methodology for compliance reporting of DO.

Provides Years of Sampling for All Field Conditions

The ProSolo handheld meets the demands of true field work with a rugged, waterproof case (IP-67 rated) and a military-spec (MS) cable connector. Rigorously drop tested from all angles, the handheld features a 3-year warranty, while a 2-year warranty is included with the probe assembly and ODO Cap.

Advanced Data Management

ProSolo includes KorDSS Software, a powerful data management program for easy 2-way communication between the meter and a PC. A unique data backup feature allows for the export of data to a USB flash drive (included) in csv format without having to connect to a computer.

Convenient Sampling Experience

  • Ergonomic handheld for a comfortable grip
  • Easy-to-read color display and backlit keypad
  • Large onboard memory with storage capacity for over 100,000 data sets
  • Site ID and Data ID tag capabilities for data organization
  • Data export directly to USB flash drive (included)
  • Single cable design for probe assembly lengths ranging from 1- to 100-meters
  • Long-life rechargeable lithium-ion battery that is user-replaceable
  • Simple and quick calibration procedures

YSI Pro2030 Dissolved Oxygen, Conductivity, Salinity Instrument

User-replaceable sensors and cables and convenient Quick Cal feature makes it extremely user friendly. Mil-spec (military spec) connectors, IP-67 waterproof and rubber over molded case, and 1-meter drop tests ensure the instrument remains in your hands to provide years of sampling even in the harshest field conditions. The feature set of the Pro2030 results in a low total cost of ownership over the life of the product and proves that it is smarter, tougher, and more versatile.

Please visit the Pro2030 Kits page for fully assembled systems.

Fast response times with the Polarographic or Galvanic DO sensor allows you to complete your sampling routine quickly. The long life of the Polarographic sensor saves time and money and reduces your overall cost. The Galvanic sensor enables you to start sampling immediately without a warm-up period. Either sensor you choose for the field will give you accurate, quality data.

The super-stable 4-electrode conductivity cell is built into the cable and will provide years of accurate data. The cells are designed for rugged field performance and are easily cleaned and require minimal maintenance.

Additional features include:

  • Internal barometer for highest accuracy
  • Choose field DO sensors (Polarographic or Galvanic)
  • Quick Cal allows DO calibrations within seconds with the push of a button
  • Stores 50 data sets
  • Graphic, backlit display and glow in the dark keypad
  • Available with 1, 4, 10, 20, or 30-meter cables (4-meter and longer cables include cable management kit)
  • View display with polarized sunglasses on
  • Fastest DO response time on the market with 95% response in 8 seconds with standard membrane
  • Multiple languages include English, Spanish, French and German
  • User replaceable DO sensors and cables •Conductivity cell built-in
  • 3-year instrument; 2-year cable warranty

YSI now offers an Extended Warranty for the Pro2030 (new instruments only).

A great alternative to the Pro2030 is a ProSolo ODO/CT system. Rather than an electrochemical DO sensor, the ProSolo ODO/CT uses an optical DO sensor that requires less maintenance and is not dependent on stirring.

When ordering the Pro2030 you must order the instrument, cable, and DO sensor separately, allowing you to choose the system that best fits your application. Conductivity is part of the cable you order and included in the cable purchase.

Please visit our extensive dissolved oxygen resource page to learn about all things DO and BOD related.

YSI Pro1030 pH or ORP, Conductivity, Salinity Instrument

Rugged and reliable, the YSI Pro1030 provides everything you need in a handheld instrument for the measurement of either pH or ORP along with temperature, conductivity, specific conductance, salinity and total dissolved solids (TDS).

User-replaceable sensors (pH and ORP sensors) and cables and convenient calibration routine feature makes it extremely user friendly. Mil-spec (military spec) connectors, IP67 waterproof and rubber over molded case, and 1-meter drop tests ensure the instrument remains in your hands to provide years of sampling even in the harshest field conditions. The feature set of the Pro1030 results in a low total cost of ownership over the life of the product and proves that it is smarter, tougher, and more versatile.

YSI now offers an Extended Warranty for the Pro1030 (new instruments only).

The super-stable 4-electrode conductivity cell is built into the cable and will provide years of accurate data. The cells are designed for rugged field performance and are easily cleaned and require minimal maintenance.

Additional features include:

  • Smart calibration routine allows easy calibrations with the press of a button, remembers previous cal values and simply walks you through the calibration
  • Stores 50 data sets
  • Graphic, backlit display and glow in the dark keypad
  • Available with 1, 4, 10, 20, or 30-meter cables (4-meter and longer cables include cable management kit)
  • View display with polarized sunglasses on
  • Multiple languages include English, Spanish, French and Portuguese
  • User replaceable pH or ORP sensors and cables
  • Conductivity cell built-in
  • 3-year instrument; 2-year cable warranty; 1-year pH and ORP sensor warranty

When ordering the Pro1030 you must order the instrument, cable, and pH or ORP sensor separately, allowing you to choose the system that best fits your application. Conductivity and temperature are part of the cable you order and included in the cable purchase.

YSI Pro1020 Dissolved Oxygen and pH or ORP Instrument

Rugged and reliable, the YSI Pro1020 provides everything you need in a handheld instrument for the measurement of either pH or ORP along with temperature, and dissolved oxygen.

User-replaceable sensors and cables along with convenient calibration routine feature makes it extremely user friendly. Mil-spec (military spec) connectors, IP67 waterproof and rubber over molded case, and 1-meter drop tests ensure the instrument remains in your hands to provide years of sampling even in the harshest field conditions. The feature set of the Pro1020 results in a low total cost of ownership over the life of the product and proves that it is smarter, tougher, and more versatile.

Additional features include:

  • User-replaceable cables and sensors provide versatility, reduce down time and reduce overall cost of ownership.
  • Available with 1- 4- 10- 20- and 30-m cable lengths standard (cable management kit included on all cables 4-m and longer).
  • Smart calibration; the instrument remembers the previous calibration values and simply walks you through the routine.
  • Stores 50 data sets; no need to write down data.
  • Large graphic, backlit display and glow in the dark keypad. Usable in any lighting condition. The display is also visible when wearing polarized sunglasses.
  • Tough. IP67, impact-resistant, waterproof case. Waterproof without the battery cover as well.
  • Rubber over molded case provides extra durability. Military spec connectors are unsurpassed for ruggedness.
  • Multiple languages include English, Spanish, French, and Portuguese.
  • Choose either polarographic or galvanic DO sensors.
  • Quick response times; 95% DO response time in approximately 8 seconds with standard membrane (fastest response time in the market).
  • 3-year instrument; 2-year cable; 1-year sensor warranty (Galvanic DO is 6-months)

YSI now offers an Extended Warranty for the Pro1020 (new instruments only).

When ordering the Pro1020 you must order the instrument, cable, and dissolved oxygen (Polarographic of Galvanic), pH or ORP sensor separately, allowing you to choose the system that best fits your application. Temperature is part of the cable you order and included in the cable purchase.

Wondering if it will be difficult to change your dissolved oxygen cap membrane? If you have 15 seconds we'll show you how.

YSI Pro30 Conductivity, Salinity Instrument

Rugged and reliable, the YSI Pro30 provides everything you need in a handheld conductivity meter.

User-replaceable cables and convenient Quick Cal feature that walks you through the calibration routine makes it extremely user friendly. Mil-spec (military spec) quarter-turn locking connectors, IP-67 waterproof rating with a rubber over molded case, and 1-meter drop tests ensures durability and the instrument remains in your hands to provide years of sampling even in the harshest field conditions. The feature set of the Pro30 results in a low total cost of ownership over the life of the product and proves that it is smarter, tougher, and more versatile.

The super-stable 4-electrode conductivity cell is built directly into the cable bulkhead providing years of accurate data. The conductivity cells are designed for rugged field performance and are easily cleaned with a small conductivity brush. The electrodes require minimal maintenance.

Additional features include:

  • Quick Cal routine allows calibrations with the push of a button; remembers previous calibration values and walks you through the routine
  • Stores 50 data sets
  • Graphic, backlit display and glow in the dark keypad
  • Available with 1, 4, 10, 20, or 30-meter cables (4-meter and longer cables include cable management kit)
  • View display with polarized sunglasses on
  • Multiple languages include English, Spanish, French and German
  • User replaceable cables utilizing a robust MS connector that locks in place with a quarter turn rotation
  • Conductivity cell is part of the cable bulkhead and is a proven, field-worthy electrode
  • 3-year instrument; 2-year cable warranty

YSI now offers an Extended Warranty for the YSI Pro30 conductivity meter (new instruments only).

When ordering the Pro30 conductivity meter you must order the instrument and cable separately, allowing you to choose the system that best fits your application. The conductivity sensor is part of the cable you order and included in the cable purchase.

YSI Pro20i Dissolved Oxygen Instrument

Easy to use, rugged and reliable, the YSI Pro20i provides everything you need in a handheld instrument for the measurement of dissolved oxygen. User-friendly and convenient calibration routine and 50 data set memory. A true field instrument with IP67 waterproof, rubber over molded case, and 1-meter drop tests ensure durability to provide years of sampling even in the harshest field conditions.

Features Include:

  • Integral (i.e. built-in) cable with 1- 4- 10-m field cable; user-replaceable DO sensors
  • One Touch Cal allows for easy DO calibrations within 3 seconds with the press of a button. Automatic barometric pressure compensation.
  • Quick response times; 95% response time in approximately 8 seconds with standard membrane (fastest response time on the market)
  • Stores 50 data sets; no need to write down data
  • Large graphic, backlit display and glow in the dark keypad
  • A true field instrument - the display is visible when wearing polarized sunglasses
  • Tough. IP-67, impact-resistant, waterproof case. Waterproof with and without the battery cover
  • Rubber over molded case provides extra durability
  • Multiple languages: English, Spanish, French, and German
  • 3-year instrument; 2-year integral cable; 1-year polarographic sensors; 6-month galvanic sensor warranty

The Pro20i features an integral cable, but the Pro20 features a user-replaceable (i.e. detachable) cable. Longer cables are also available for the Pro20, as is a BOD probe/cable assembly.

YSI Pro20 Dissolved Oxygen Instrument

The YSI Pro20 dissolved oxygen meter is a rugged, user-friendly instrument for dissolved oxygen measurement. The Pro20 can be used in the lab or the field and can go from one to the other in seconds.

User-replaceable sensors and cables and convenient One Touch Cal feature makes it extremely user friendly. Mil-spec (military spec) connectors, IP-67 waterproof and rubber over molded case, and 1-meter drop tests ensure the instrument remains in your hands to provide years of sampling even in the harshest field conditions. The feature set of the Pro20 results in a low total cost of ownership over the life of the product.

Fast response times with the Polarographic or Galvanic dissolved oxygen sensors allow you to complete your sampling routine quickly. The long life of the Polarographic sensor saves time and money and reduces your overall cost. The Galvanic sensor enables you to start sampling immediately without a warm-up period. Either sensor you choose for the field will give you accurate, quality data.

Additional features include:

  • Internal barometer for highest accuracy
  • Choose field DO sensors (Polarographic or Galvanic) or lab BOD probe for BOD in wastewater
  • One Touch Cal calibrates within 3 seconds with the push of a button
  • Stores 50 data sets
  • Graphic, backlit display and glow in the dark keypad
  • Available with 1, 4, 10, 20, 30 or 100-meter cables
  • View display with polarized sunglasses on
  • Fastest response time on the market with 95% response in 8 seconds with standard membrane
  • Multiple languages include English, Spanish, French and German
  • User replaceable sensors and cables
  • 3-year instrument; 2-year cable warranty

Lab or field - the Pro20 is ready for whatever you need when it comes to oxygen meters.

When ordering the YSI Pro20 you must order the instrument, cable, and dissolved oxygen probe separately, allowing you to choose the system that best fits your application.

YSI Pro10 pH or ORP Instrument

Rugged and reliable, the YSI Pro10 provides everything you need in a handheld instrument for the measurement of either pH or ORP along with temperature.

User-replaceable sensors and cables along with convenient calibration routine feature makes it extremely user friendly. Mil-spec (military spec) connectors, IP67 waterproof and rubber over molded case, and 1-meter drop tests ensure the instrument remains in your hands to provide years of sampling even in the harshest field conditions. The feature set results in a low total cost of ownership over the life of the product and proves that it is smarter, tougher, and more versatile.



Additional features include:

  • User-replaceable cables and sensors provide versatility, reduce down time and reduce overall cost of ownership.
  • Available with 1- 4- 10- 20- and 30-m cable lengths standard (cable management kit included on all cables 4-m and longer).
  • Smart calibration; the instrument remembers the previous calibration values and simply walks you through the routine.
  • Stores 50 data sets; no need to write down data.
  • Large graphic, backlit display and glow in the dark keypad. Usable in any lighting condition. The display is also visible when wearing polarized sunglasses.
  • Tough. IP67, impact-resistant, waterproof case. Waterproof without the battery cover as well.
  • Rubber over molded case provides extra durability. Military spec connectors are unsurpassed for ruggedness.
  • Multiple languages include English, Spanish, French, and Portuguese.
  • 3-year instrument; 2-year cable; 1-year sensor warranty

When ordering, you must order the instrument, cable, and pH or ORP sensor separately, allowing you to choose the system that best fits your application. Temperature is part of the cable you order and included in the cable purchase.

YSI EcoSense EC300A Conductivity Meter

Simple, affordable one-handed operation for a multitude of applications to measure conductivity, specific conductance, salinity, TDS and temperature.

Available with 1-, 4- or 10-meter cable lengths. Cables include the rugged, weighted probe assembly attached. The four-electrode cell is superior for conductivity performance in the field.

Features

  • 1-year instrument, electrode and cable warranty
  • IP67 waterproof rating
  • Rugged weighted probe assembly; super-stable electrode designed for field use
  • Automatic temperature compensation
  • Low battery indicator with 500 hour battery life
  • Automatic shutoff after 30 minutes of inactivity
  • 1-, 4- or 10-meter cable lengths available
  • CE compliance
  • 50 data set memory

The EC300A (gray) directly replaces the EC300 (blue).

Instrument and cables ordered separately unless ordering as a kit.

Kits are available as an instrument, cable (1-, 4- or 10-meters), and hard-sided case.

YSI EcoSense EC300M Conductivity Meter with Extended Memory

The EC300M offers convenient measurement of conductivity, specific conductance, salinity, total dissolved solids, and temperature in many field applications. Compared to the EcoSense® EC300A the EC300M features extended memory and simple data transfer with a micro-USB port.

The following EC300M purchase options are available:

601034: EC300M instrument only

601035: EC300M instrument, hard-sided transport case, and probe with 1 meter field cable

601036: EC300M instrument, hard-sided transport case, and probe with 4 meter field cable

601037: EC300M instrument, hard-sided transport case, and probe with 10 meter field cable

Features of the EC300M include:

  • Waterproof micro-USB port for transferring data to PC; no software required
  • Holds 250 data sets; no need to write down data
  • Real-time clock for date/time stamp of saved data
  • User-selectable recalibration prompt provides reminder to calibrate
  • Automatic temperature compensation
  • IP-67 waterproof housing
  • 1-year instrument and probe/cable assembly warranty
  • 1-, 4- and 10-meter durable field cables available
  • Auto shutoff function after 30 minutes of inactivity
  • Super-stable, four-electrode conductivity cell designed for the field

The EC300M is designed for quick, accurate results in an economical platform. With a one-year instrument and electrode warranty, waterproof case and ease of use, the EC300M will fit your needs.

YSI EcoSense ODO200 Optical Dissolved Oxygen and Temperature Meter

EcoSense ODO200 is an optical-based dissolved oxygen meter ideal for DO sampling. ODO200 sensors are EPA approved for wastewater compliance reporting of DO.

Accurate, economical, handheld dissolved oxygen measurements using optical technology.

The EcoSense® line of compact, handheld instruments provides the most accurate data in the most affordable format. The instruments feature an easy-to-use interface, one-hand operation, IP67 waterproof case, and low cost of ownership over the life of the product.

Please visit the ODO200 Kits page for fully assembled systems.

The ODO200 simultaneously measures dissolved oxygen, using optical technology, and temperature with the following features:

  • Automatic temperature compensation
  • 1-year instrument, cable and sensor cap warranty
  • 1-, 4- and 10-meter durable field cables available
  • Manual input for salinity and pressure compensation
  • Low battery indicator with 100 hour battery life
  • Replaceable optical sensor cap (12-18 month life)
  • Auto shutoff function after 30 minutes of inactivity
  • 50 data set reviewable memory
  • IP67 waterproof rating

The ODO200 is designed for quick, accurate results in an economical platform. The ability to measure DO optically along with temperature, in a simple, compact handheld allows the instrument to be used across multiple application sampling strategies in the field. With a one-year instrument, probe and sensor cap warranty, waterproof case and ease-of-use, the EcoSense ODO200 will fit your needs.

Optical benefits include:

  • no stirring requirement
  • no warm-up time
  • no electrolyte solutions
  • no electrode maintenance
  • no membranes
  • no interferences from gases such as hydrogen sulfide

YSI EcoSense ODO200M Optical Dissolved Oxygen and Temperature Meter with Extended Memory

The EcoSense ODO200M is an optical-based dissolved oxygen meter ideal for DO sampling. Sensors are EPA approved for wastewater compliance reporting of DO. Compared to the EcoSense® ODO200, the ODO200M features extended memory and simple data transfer with a micro-USB port

The following ODO200M purchase options are available:

601023: ODO200M instrument only

601024: ODO200M instrument, hard-sided transport case, and probe with 1 meter field cable

601025: ODO200M instrument, hard-sided transport case, and probe with 4 meter field cable

601026: ODO200M instrument, hard-sided transport case, and probe with 10 meter field cable

Features of the ODO200M include:

  • Waterproof micro-USB port for transferring data to PC; no software required
  • Holds 250 data sets; no need to write down data
  • Real-time clock for date/time stamp of saved data
  • User-selectable recalibration prompt provides reminder to calibrate
  • Automatic temperature compensation; manual input for salinity and pressure compensation
  • IP-67 waterproof housing
  • Replaceable optical sensor cap with 12-18 month life
  • 1-year instrument, probe/cable and sensor cap warranty
  • 1-, 4- and 10-meter durable field cables available
  • Auto shutoff function after 30 minutes of inactivity

The ODO200M is designed for quick, accurate results in an economical platform. The convenient optical dissolved oxygen sensor and the simple, compact handheld design allow the ODO200M to be used in many applications. With a one-year warranty, waterproof case, and intuitive operation, the EcoSense ODO200M will fit your needs.

Optical Dissolved Oxygen measurement benefits include:

  • No stirring requirement
  • No warm-up time
  • No electrolyte solutions
  • No electrode maintenance
  • No membranes
  • No interferences from gases such as hydrogen sulfide

YSI EcoSense DO200A Dissolved Oxygen Meter

The DO200A is part of the EcoSense® family of products. The DO200A dissolved oxygen instrument offers fast dissolved oxygen response times in wastewater, surface water, and aquaculture applications. Available sensors are EPA approved for wastewater compliance reporting of BOD, CBOD, and DO.


The DO200A offers fast DO response times in wastewater, surface water and aquaculture applications.

Calibrates easily in a saturated air environment and displays in % or ppm (mg/L) values, giving you the best DO data quality possible. Available with 1-, 4- or 10-meter cable lengths.

The DO200A can also be used in the laboratory with the 200-BOD self-stirring lab probe making the DO200A a true lab and field instrument.

Screw on PE membranes make membrane changes easier than ever. The PE membranes also have faster response times and reduce stirring dependence greatly.

If you're interested in dissolved oxygen measurements you may also be interested in our Professional Series products Pro20 or optical DO handheld ProODO.

Features

  • 1-year instrument, DO electrode and cable warranty
  • IP67 waterproof rating
  • Screw-on cap membrane
  • Low battery indicator with 500 hour battery life
  • Automatic shutoff after 30 minutes of inactivity
  • Salinity, pressure and temperature compensation
  • CE compliance
  • 1-, 4- or 10-meter cable lengths available; BOD probe available
  • 50 data set reviewable memory

The DO200A (gray) directly replaces the DO200 (blue).

Instrument and cables ordered separately unless ordering as a kit.

DO200A kits are available as an instrument, cable (1-, 4- or 10-meters), and hard-sided case.

YSI EcoSense DO200M Dissolved Oxygen Meter with Extended Memory

The DO200M dissolved oxygen instrument offers fast dissolved oxygen response times in wastewater, surface water, and aquaculture applications. Available sensors are EPA approved for wastewater compliance reporting of BOD, CBOD, and DO. Compared to the EcoSense® DO200A, the DO200M features extended memory and simple data transfer with a micro-USB port.

The following DO200M purchase options are available:

601027: DO200M instrument only

601028: DO200M instrument, hard-sided transport case, polarographic probe with 1 meter field cable, 5908 cap membrane kit

601029: DO200M instrument, hard-sided transport case, polarographic probe with 4 meter field cable, 5908 cap membrane kit

601030: DO200M instrument, hard-sided transport case, polarographic probe with 10 meter field cable, 5908 cap membrane kit

Features of the DO200M include:

  • Waterproof micro-USB port for transferring data to PC; no software required
  • Holds 250 data sets; no need to write down data
  • Real-time clock for date/time stamp of saved data
  • User-selectable recalibration prompt provides reminder to calibrate
  • IP-67 waterproof housing
  • Automatic temperature compensation; manual input for salinity and pressure compensation
  • 1-year instrument and probe warranty
  • 1-, 4- and 10-meter field cables available; lab self-stirring BOD probe also available
  • Low battery indicator with 150 hour battery life
  • Screw-on cap membranes with fast response and low-stirring requirement
  • Auto shutoff function after 30 minutes of inactivity

The DO200M is designed for quick, accurate results in an economical platform. With a one-year instrument and electrode warranty, waterproof case and ease of use, the EcoSense DO200M will fit your needs.

YSI EcoSense pH100A pH Meter

YSI's EcoSense® product line of compact, handheld instruments includes the pH100A pH meter. For simple, one handed operation for pH readings or mV values and temperature the pH100A is a logical choice.

The low overall cost of ownership includes an economical list price, competitively priced probes compared to other manufacturers, and rugged, reliability limiting down time. Designed specifically for spot sampling applications, the pH100A meter will fill the need for simple, one-handed operation instrumentation.

Whether the need is a single monitoring instrument for temperature and pH or mV for wastewater, surface water, or aquaculture, the pH100A pH tester is up to the task.

The YSI pH100A also allows the ability to connect a flat-tipped (112-1) double-junction and piercing-tipped (111-1) probe for additional applications. In addition, the pH probes have waterproof, submersible cables along the length of the cable unlike many competitive probes.

Features

  • 1-year instrument warranty
  • IP67 waterproof housing
  • Internal buffer recognition
  • Auto or manual temperature compensation
  • CE compliance
  • Sensors are available as single parameter or combinations
  • for pH or mV and temperature
  • Low battery indicator with 1000 hour battery life
  • Electrode offset recognition
  • Autolock mode holds stable readings on display
  • Displays electrode efficiency
  • 50 data set memory

The pH100A pH tester (gray) directly replaces the pH100 (blue).

Instrument and cables ordered separately unless ordering as a kit.

Kits are available as an instrument, cable (1- or 4-meters), and hard-sided case.

YSI EconSense pH100M pH Meter with Extended Memory

The EcoSense® pH100M handheld instrument provides accurate and repeatable pH, mV, and temperature measurements in an affordable format. Compared to the EcoSense® pH100A, the pH100M features extended memory and simple data transfer with a micro-USB port.

The following pH100M purchase options are available:

601031: pH100M instrument only

601032: pH100M instrument, hard-sided transport case, and pH/Temp field probe with 1 meter cable

601033: pH100M instrument, hard-sided transport case, and pH/Temp field probe with 4 meter cable

Features of the pH100M include:

  • Waterproof micro-USB port for transferring data to PC; no software required
  • Holds 250 data sets; no need to write down data
  • Real-time clock for date/time stamp of saved data
  • User-selectable recalibration prompt provides reminder to calibrate
  • Automatic buffer recognition (US or NIST buffer sets)
  • Auto/Manual temperature compensation
  • IP-67 waterproof housing
  • 1-year instrument warranty; 6-month electrode warranty
  • 1 and 4-meter field cables available; lab pH and ORP electrodes also available
  • Autolock mode holds stable readings on display
  • Low battery indicator with 150 hour battery life
  • Auto shutoff function after 30 minutes of inactivity
  • Displays electrode efficiency

YSI EcoSense pH/EC1030A pH and Conductivity Pen

he pH/EC1030A is part of the EcoSense® family of products. The pH/EC1030A offers accurate, low-cost measurement of pH, conductivity, total dissolved solids (TDS), salinity and temperature.

The pH/EC1030A is designed for quick, accurate results in an economical platform. The pH/EC1030A is the perfect instrument for spot sampling of pH, conductivity, total dissolved solids (TDS), salinity and temperature in applications such as wastewater, surface water, aquaculture, hydroponics, pools, and education.

The pH/EC1030A features an easy-to-use graphic interface, simple one-hand operation, memory, and low cost of ownership over the life of the product. Features of the pH/EC1030A include:

  • IP-67 waterproof housing
  • 1-year instrument, 6-month electrode warranty
  • Automatic temperature compensation
  • Easily switch between °C and °F
  • Clear, easy-to-read graphic LCD display
  • Auto shut-off feature
  • Replaceable pH and conductivity electrode
  • ''Hold” feature locks readings on display
  • 50 data-set memory
  • >100 hour battery life and low battery indicator
  • CE compliant





YSI EcoSense EC30A Conductivity Pen

The EC30A is part of the EcoSense® family of products. The EC30A offers accurate, low-cost measurement of conductivity, total dissolved solids (TDS) and temperature.

The EcoSense ® EC30A pen-style instrument provides an ultimate feature set over similar competitive models. The EC30A features an easy-to-use interface, simple one-hand operation and low cost of ownership over the life of the product. The easy, user-replaceable electrode ensures the instrument is always ready for use.

The EC30A measures conductivity, TDS and temperature with the following features:

  • IP-67 waterproof housing
  • 1-year instrument warranty
  • Automatic temperature compensation
  • User-replaceable electrodes
  • 1- or 2-point calibration
  • Clear, easy-to-read display with on-screen instructions
  • Selectable units of measure for conductivity, TDS and temp
  • Selectable or auto-ranging for conductivity or TDS
  • ''Hold'' feature locks readings on display
  • >200 hour battery life; low battery indicator
  • Last calibration GLP record

With a one-year instrument and electrode warranty, the EC30A will fit your needs for an easy-to-use conductivity, TDS and temperature instrument.

The EC30A is a reusable pen-style instrument. The electrode cap is easy to replace while keeping the instrument. No throw-away instrument here!

YSI EcoSense ORP15A ORP Temperature Pen Tester

The ORP15A is part of the EcoSense® family of products. The ORP15A offers accurate, low-cost measurement of ORP (absolute and relative) along with temperature.

The ORP15A offers accurate, low cost measurement of ORP (absolute and relative mV) and temperature.  Measuring these parameters in a pen-style instrument that's also simple and compact means you get the most convenient sampling method available.

The ORP15A is an easy-to-use mV instrument for food (such as vegetable washing and sanitizers), swimming pools, wastewater, and aquaculture. Also includes a graphic display with on-screen instructions.

Features

  • Waterproof IP-67 case
  • 1-year warranty; 6-month electrode warranty
  • Absolute and relative readings
  • Replaceable electrodes
  • 50-set memory
  • Low battery indicator
  • Hold feature locks readings on display
  • CE compliance
  • >200 hour battery life with low battery indicator

YSI EcoSense pH10A pH Pen Tester

The pH10A is part of the EcoSense® family of products. It's the perfect tester for economical spot sampling of pH and temperature in many applications including wastewater, surface water, aquaculture, hydroponics, pools, and education.

The pH10A is the perfect pH tester for economical spot sampling of pH and temperature in applications such as wastewater, surface water, aquaculture, hydroponics, pools, and education.

This ultra-compact instrument even includes a graphic display with on-screen instructions!

Available with single- or dual-junction electrodes (comes with single-junction electrode).  No need to throw this pen-style pH instrument away when the sensor goes bad like some other products.  Simply replace the electrode within minutes and keep testing!

Features

  • Waterproof IP-67
  • 1-year warranty
  • Automatic calibration and buffer recognition
  • 50-set memory (pH, temp, date and time stamp)
  • Replaceable single- or double-junction electrode
  • GLP functionality
  • 1-, 2-, or 3-point calibration
  • Hold feature locks stable readings on the display
  • CE compliance
  • >200 hour battery life with low battery indicator

The pH10A (gray) directly replaces the pH10 (blue).


Switch to Mobile Version
